MINI PC - B
MINI PC - B

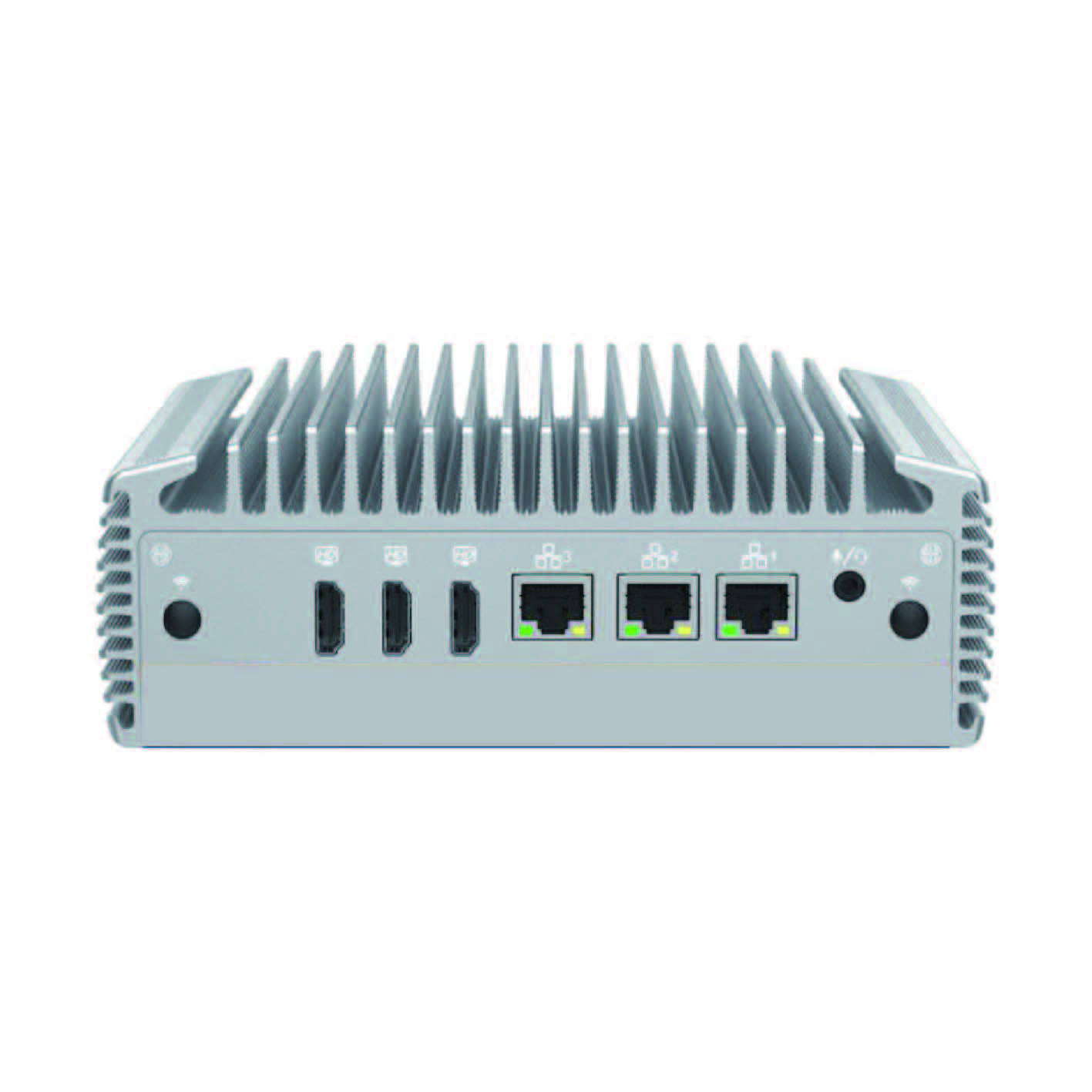

IPM-13SB / IPM-15SB / IPM-17SB
● All aluminum structure, fanless design.
● Intel 12th Core i3/i5/i7 Processor.
● Support TPM2.0, support windows 11.
● Support 1*M.2 2280 slot, 1*2.5”SATA.
● Support 2*COM (2*COM RS232/485 is Optional).
● 3*HDMI,support synchronous/asynchronous triple display.
● Support OS: Windows 10, Windows 11, Linux..
Selection
- Specifications
- Features
| Model | IPM-13SB / IPM-15SB / IPM-17SB |
|---|---|
| OS | |
| CPU | Intel Core i3 1215U, Intel Core i5 1235U, Intel Core i7 1255U, Fanless |
| Memory | 1*DDR5 4800MHz SODIMM memory slot, Max. Support 32GB + Support 1*M.2 2280 NVME, 1*2.5” SATA |
| Network | 3*Intel i226-V 100/1000/2500M |
| Interface | 3*HDMI, 2*COM, 4*USB3.2, 1*Power Switch, 1*SIM slot, 1*DC-IN 12V, 3*2.5G LAN, 1*Audio |
| Screen Size | |
| Touch screen | |
| Resolution | |
| Display area | |
| Brightness | |
| Contrast Ratio | |
| Viewing Angle | |
| Display mode | |
| Backlight Life | |
| Display colors | |
| Color gamut | |
| Response time | |
| Display ratio | |
| Input voltage | AC 100 - 240V |
| Adapter | |
| Power consumption | |
| Power consumption (standby) | |
| Drop height | |
| Operation temperature | Operating: 0°C ～ +40°C (HDD), -20°C ～ +60°C (Industrial grade SSD), surface air flow |
| Operation humidity | 5%~95% RH |
| Storage temperature | |
| Storage humidity | |
| Case color | |
| Body dimension | |
| Net weight | |
| Package dimension | |
| Package weight | |
| Accessory | Power adapter, power cord, Vesa mount,warranty card |
| Wall Mounting VESA | Wall mounting brackets (optional) |
| Remark | Expansion Slot :1*M.2 2280 slot M-Key;1*M.2 3052 slot B-key;1*M.2 2230 slot E-key、Other Function:TPM2.0 |
