Mini PC
>
MINI PC - D
MINI PC - D

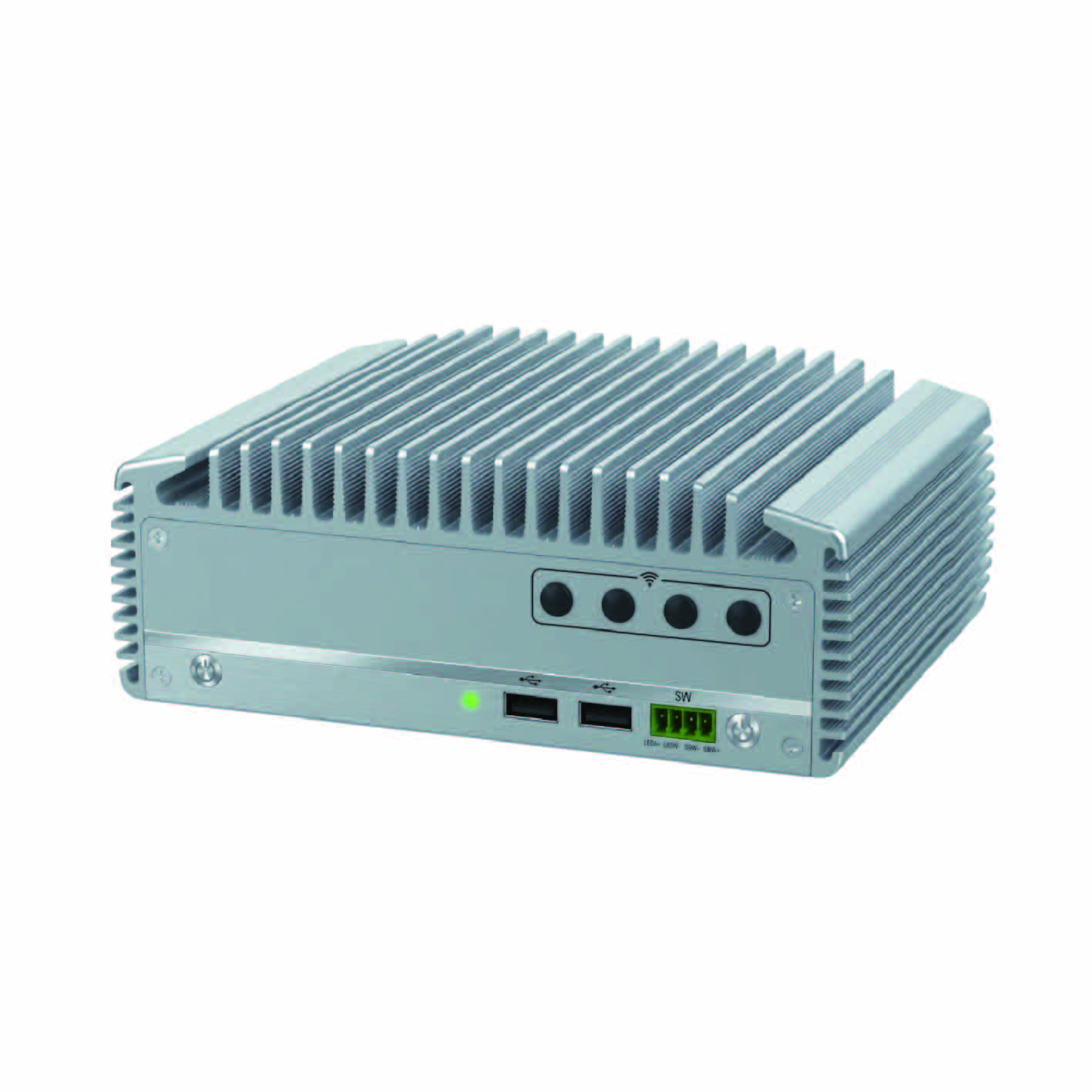

IPM-15SD / IPM-17SD / IPM-18SD
● All aluminum structure, fanless design.
● Intel 12th Alder Lake-U Cor i5/i7 Processor.
● Support TPM2.0, support windows 11.
● Support 1*M.2 2280 slot, 1*2.5”SATA.
● Support 6*COM (COM1 - COM2 for RS232, COM3 - COM6 for RS485).
● 2*HD-MI,1*Type-C,support synchronous/asynchronous triple display.
● Support OS: Windows 10, Windows 11, Linux.
Selection
- Specifications
- Features
| Model | IPM-15SD / IPM-17SD / IPM-18SD |
|---|---|
| OS | |
| CPU | Intel® N100, 4, Intel Core i5 1235U, Intel Core i7 1255U, Fanless |
| Memory | N100: 1*DDR5 up to 32GB / Core: 1*DDR5 up to 16GB, 4800 SODIMM memory slot+Support 1*M.2 2280 slot, 1*2.5” SATA |
| Network | N100: 2*Intel i226-V 100/1000/2500M Core: 1*Intel i226-V 100/1000/2500M, 1*Intel i226-LM 100/1000/2500M |
| Interface | 6*COM,4*USB3.2, 2*HDMI, 2*2.5G LAN, 1*Audio, 1*DC-IN 12V, 1*Type-C, GPIO*8, 1*Power Switch, 2*USB 2.0,1*Remote Switch |
| Screen Size | |
| Touch screen | |
| Resolution | |
| Display area | |
| Brightness | |
| Contrast Ratio | |
| Viewing Angle | |
| Display mode | |
| Backlight Life | |
| Display colors | |
| Color gamut | |
| Response time | |
| Display ratio | |
| Input voltage | AC 100 - 240V |
| Adapter | |
| Power consumption | |
| Power consumption (standby) | |
| Drop height | |
| Operation temperature | operating: -20°C ～ +70°C, surface air flow |
| Operation humidity | 5%~95% RH |
| Storage temperature | |
| Storage humidity | |
| Case color | |
| Body dimension | |
| Net weight | |
| Package dimension | |
| Package weight | |
| Accessory | Power adapter, power cord, Vesa mount,warranty card |
| Wall Mounting VESA | wall mounting brackets (optional) |
| Remark | Expansion Slot :1*M.2 2280 slot M-Key;1*Mini PCIE;1*M.2 2230 slot E-key、Other Function:TPM2.0, PXE boot, Watch Dog |
