IPM-15SE / IPM-17SE

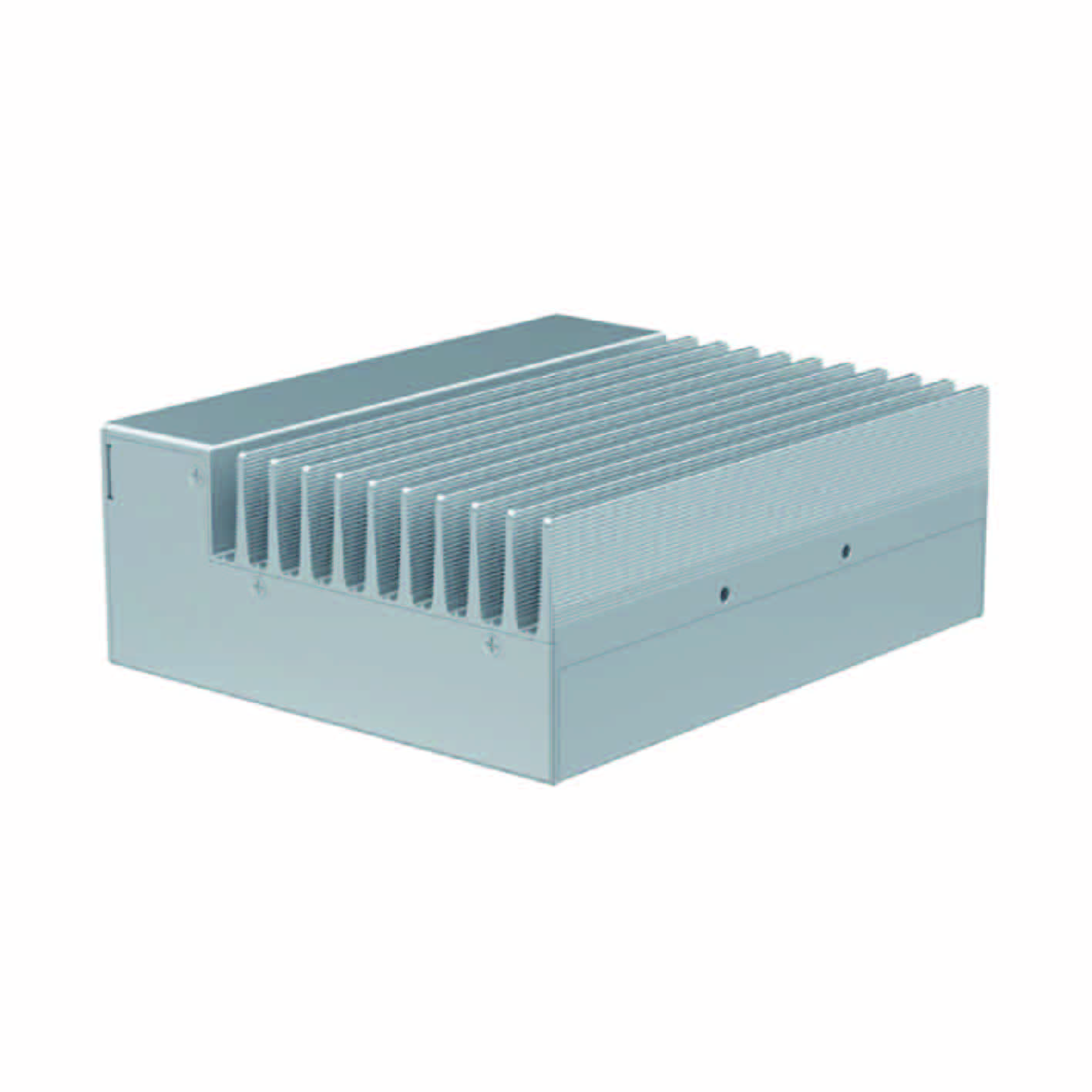

● All-aluminum alloy structure, fanless and efficient heat dissipation
● 2* DDR5 4800MHz SODIMM memory slots, up to 64 GB
● 3* Intel i210-AT Ethernet + 1* Intel i219-LM Ethernet (LAN1 supports Vpro function)
● 2* DP interfaces, support synchronous/asynchronous dual display
● Support OS: Windows 10, Windows 11, Linux.
● Support DIN-Rail Mounting
● Suport 12-24V DC
Selection
- Specifications
- Features
| Model | IPM-15SE / IPM-17SE |
|---|---|
| OS | Windows 10, Windows 11, Linux. |
| CPU | Intel Core i5 1235U (Turbo 4.4G)/Intel Core i7 1255U (Turbo 4.7G),10 core 12 threads Fanless |
| Memory | 2*DDR5 4800 SODIMM memory slot, Max. Support 64GB+Support 1*M.2 2280 M-Key |
| Network | 3* Intel i210-AT, 1* Intel I219-LM Gigabit Ethernet |
| Interface | 2* DP, 3* Intel I210-AT, 1* Intel I219-LM Gigabit Ethernet, 4* USB3.0, 1* power button |
| Screen Size | |
| Touch screen | |
| Resolution | |
| Display area | |
| Brightness | |
| Contrast Ratio | |
| Viewing Angle | |
| Display mode | |
| Backlight Life | |
| Display colors | |
| Color gamut | |
| Response time | |
| Display ratio | |
| Input voltage | AC 100 - 240V |
| Adapter | |
| Power consumption | |
| Power consumption (standby) | |
| Drop height | |
| Operation temperature | 0°C ～ +40°C (HDD), -20°C ～ +60°C (Industrial grade SSD) |
| Operation humidity | 5%~95% RH |
| Storage temperature | |
| Storage humidity | |
| Case color | |
| Body dimension | |
| Net weight | |
| Package dimension | |
| Package weight | |
| Accessory | Power adapter, power cord, Vesa mount,warranty card |
| Wall Mounting VESA | wall mounting brackets (optional), support DIN-Rail Mounting |
| Remark | Expansion Slot:1* M.2 2280 slot M-Key...、Other Function:TPM2.0, Auto power on when there is electricity, Wake on LAN |
