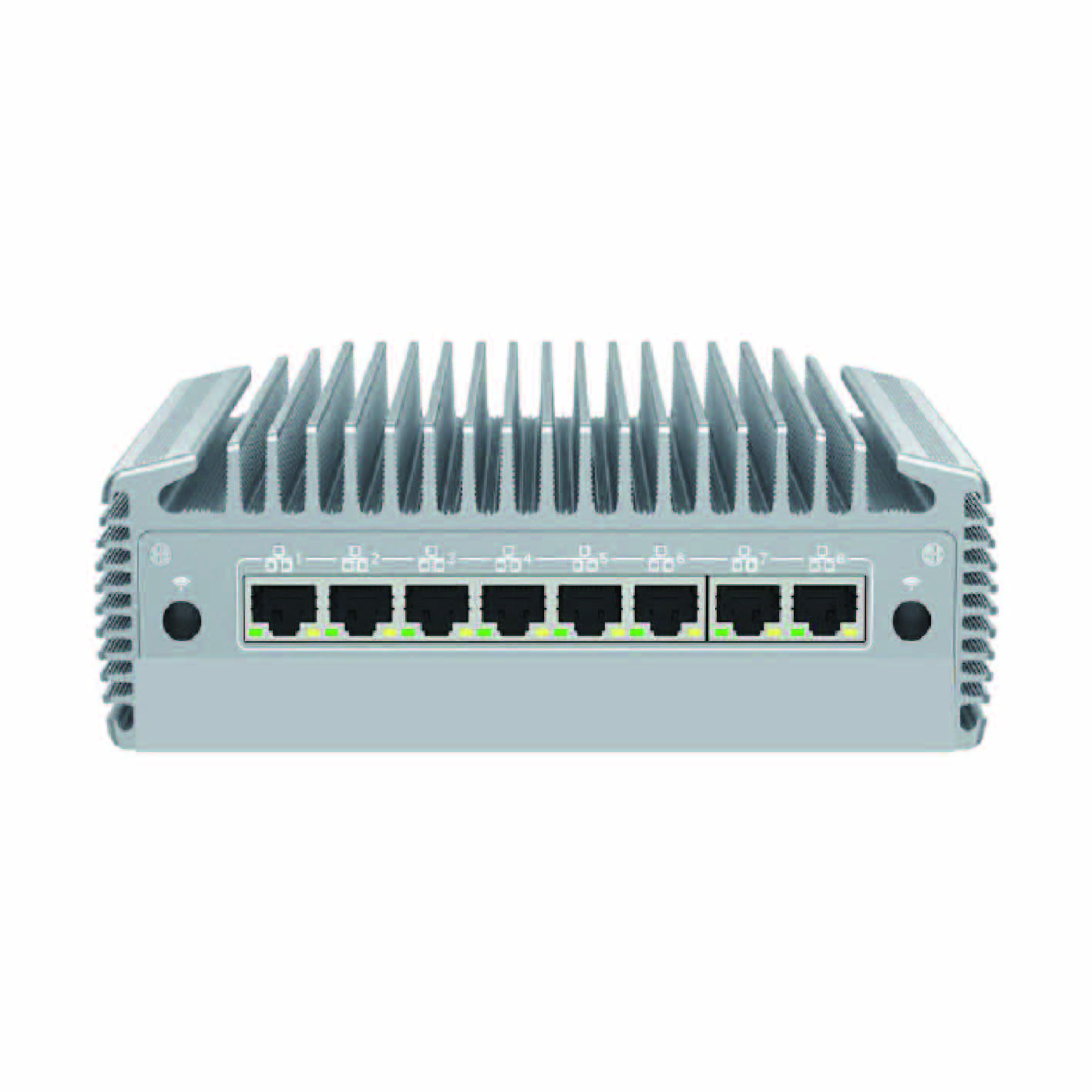

IPM-12SC / IPM-14SC
● All aluminum structure, fanless design.
● Intel 14th Core Ultra 5/7 Processor.
● Support TPM2.0, support windows 11.
● Support 1*M.2 2280 slot, 1*2.5”SATA.
● Support RJ45 COM.
● 8*RJ45 2.5G Ethernet ports (1 Intel i226-LM with vPro, 7 Intel i226-V)
● 1*HDMI,1*DP,1*Type-C,support synchronous/asynchronous triple display.
● Support OS: Windows 10, Windows 11, Linux.
Selection
- Specifications
- Features
| Model | IPM-12SC / IPM-14SC |
|---|---|
| OS | |
| CPU | Intel Core Ultra 5 125U (Turbo 4.3G)/Intel Core Ultra 7 155U (Turbo 4.8G),12 core 14 threads Fanless |
| Memory | Support 2*DDR5 5600 SODIMM memory slot, Max 64GB + Support 1*M.2 2280 NVME, 1*2.5” SATA |
| Network | 7*Intel i226-V, 1*Intel i226-LM |
| Interface | 1*HDMI, 1*DP, 1*Type-C, 4*USB3.2, 1*RJ45 serial COM port, 1*DC-IN 12V, 8*2.5G LAN |
| Screen Size | |
| Touch screen | |
| Resolution | |
| Display area | |
| Brightness | |
| Contrast Ratio | |
| Viewing Angle | |
| Display mode | |
| Backlight Life | |
| Display colors | |
| Color gamut | |
| Response time | |
| Display ratio | |
| Input voltage | AC 100 - 240V |
| Adapter | |
| Power consumption | |
| Power consumption (standby) | |
| Drop height | |
| Operation temperature | -20°C ～ +70°C |
| Operation humidity | 5%~95% RH |
| Storage temperature | |
| Storage humidity | |
| Case color | |
| Body dimension | |
| Net weight | |
| Package dimension | |
| Package weight | |
| Accessory | Power adapter, power cord, Vesa mount,warranty card |
| Wall Mounting VESA | Wall mounting brackets (optional) |
| Remark | Expansion Slot:1*M.2 2280 slot M-key...、Other Function:TPM2.0, Auto power on when there is electricity, Wake on LAN |
